by Vertiq Printers

Immersive Dual

2-in-1 Wall & Floor Printer

$17,600

A 2-in-1 wall and floor UV printer — one-click switch from wall to floor printing in under 60 seconds.

Get QuoteBook a Demo

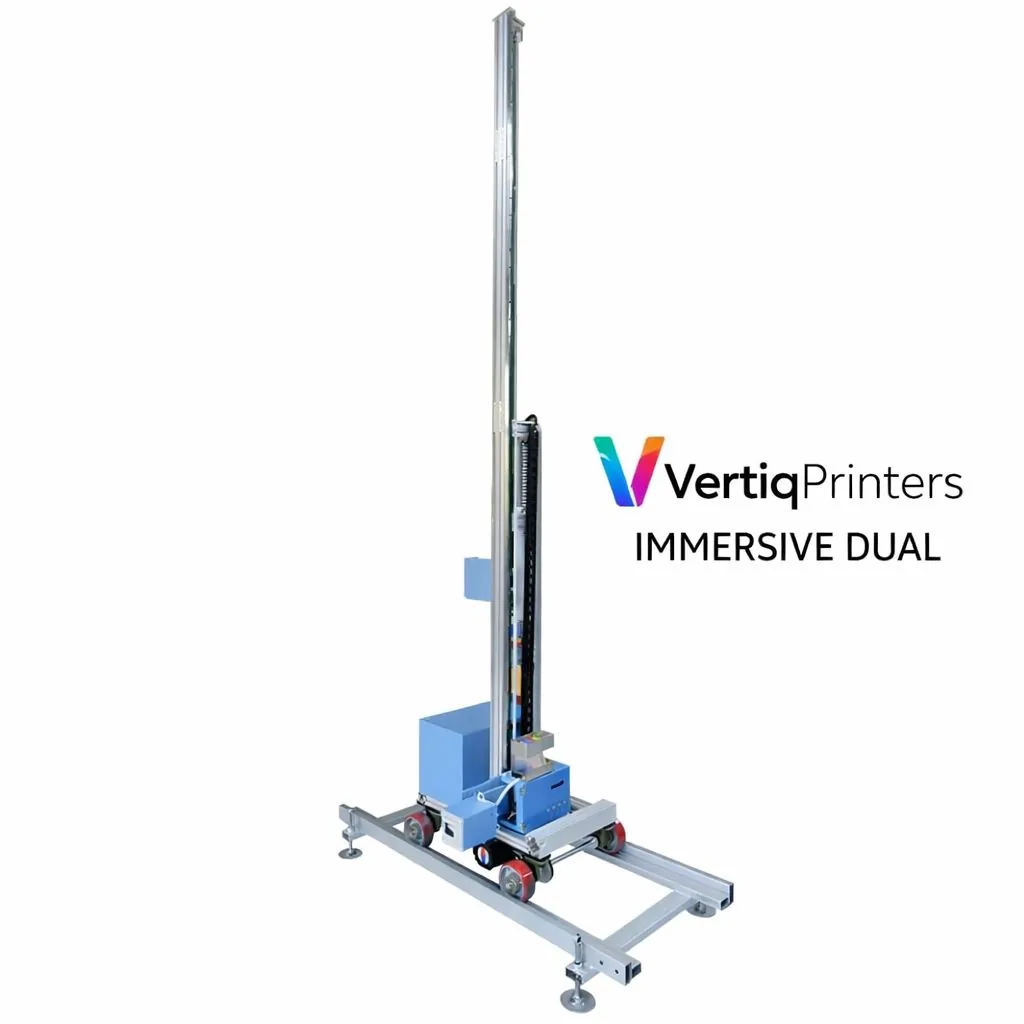

Vertiq Immersive Dual uv wall & floor printer — walls and floors, assembled and shipped from California
Vertiq Immersive Dual uv wall & floor printer — close-up detail view 1
Vertiq Immersive Dual uv wall & floor printer — close-up detail view 2
Vertiq Immersive Dual uv wall & floor printer — close-up detail view 3
Vertiq Immersive Dual uv wall & floor printer — close-up detail view 4
Wireless Option
CMYK + White
UV Ink
Wall + Floor
2 Printheads

Quick Overview

2-in-1 wall and floor printer
Switch from wall printing to floor printing in 60 s
Wall printing: max height 3 m, unlimited width
Floor printing: max 4 m, unlimited width
CMYK + White 5-colour UV ink
Prints on most surfaces, porous and nonporous
Smart features: resume printing at interrupted point, low-ink alert
Built-in white printing with white ink stirring function

Why Choose the Immersive Dual

1

Smart 2-in-1 Auto-Flip System

The intelligent auto-flip system transitions between wall and floor printing modes with one click, within 60 seconds — no complex manual adjustments.

2

Innovative Helical Rack Drive

Unlike conventional spur racks or belt drives, the helical rack delivers higher load-bearing capacity and stability with lower noise and minimal vibration, preventing print deviations.

3

Wireless Control System (Optional)

Includes an iPad for wireless mode — no cable constraints. Control the printer remotely, adjust parameters in real time and monitor progress from anywhere.

Technical Specifications

Printheads explained

Printheads
2 (I1600; supports Epson I3200, Ricoh G6)
Print Speed
3–6 m²/hour
Max Print Size (Wall)
Up to 3 m height, unlimited width
Max Print Size (Floor)
Up to 4 m, unlimited width
Surface Orientation
Vertical (walls) + horizontal (floors)
Installation Time
10 minutes
Print Resolution
2880 × 1440 DPI
Ink System
CMYK + White 5-colour UV ink
Ink Costs
$0.40–$6.70 per square meter
Image Formats
PSD, CDR, JPG, JPEG, PNG, BMP, TIFF, EPS, AI, PDF
Printable Surfaces
Brick, Wood, Concrete, Marble, Glass, Wall Covering, Ceramics, Stone, Metal, Fabric, Plaster, Tile, Stucco & more
Indoor / Outdoor
Both indoor and outdoor suitable
Software Languages
English, German, Russian, French, Latin, Vietnamese, Portuguese
Origin
Assembled & shipped from California, USA
Warranty, Training & Support
Warranty, training and support terms are confirmed in writing with your quote.

What's Included

Everything you need to start printing — itemized on your quote before you commit.

Printer unit with Epson-certified printhead
Initial ink set and cleaning supplies
6m rail for printing on uneven surfaces
Extension rod for adjustable printing height
Software licence and operator onboarding
New user starter pack with printed samples & promotional materials
Warranty, training and support terms are confirmed in writing with your quote.

Ready to Get Started with the Immersive Dual?

Get a personalized quote or book a live demo to see the machine in action.
