by Vertiq Printers

Hypermural X Wall Printer

Wall-Only UV Printer, Two Epson I1600 Printheads

$18,900

Wall-only UV printing with two Epson I1600 printheads (CMYK + white), up to 2.4 m print height and unlimited width.

Get QuoteBook a Demo

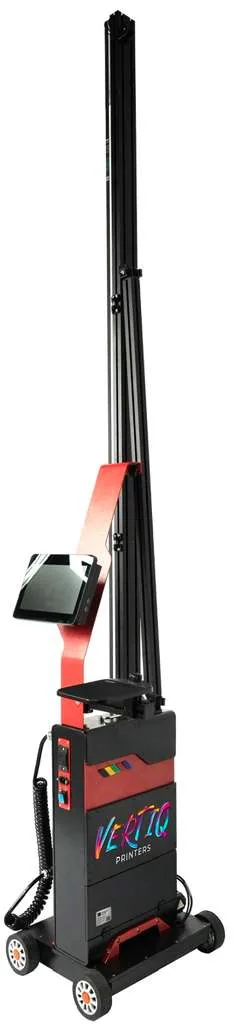

Vertiq Hypermural X uv wall printer — walls only, assembled and shipped from California

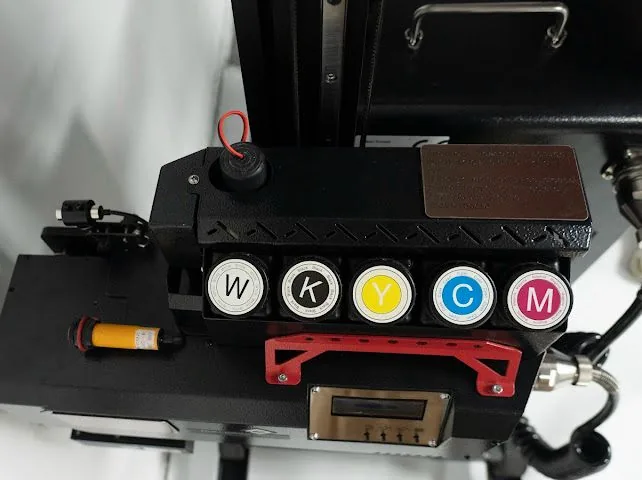

Vertiq Hypermural X uv wall printer — close-up detail view 1

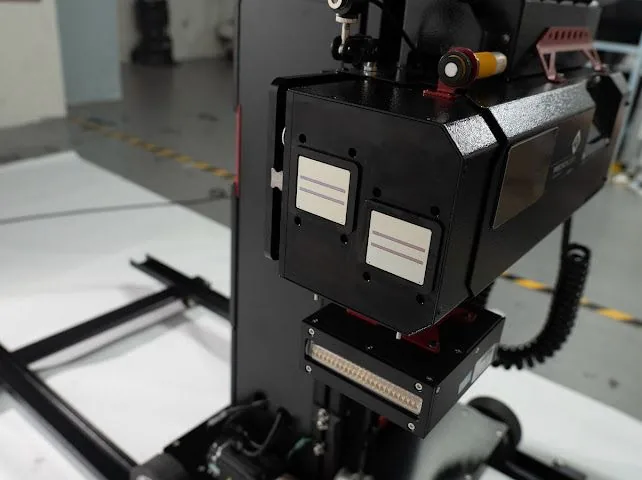

Vertiq Hypermural X uv wall printer — close-up detail view 2

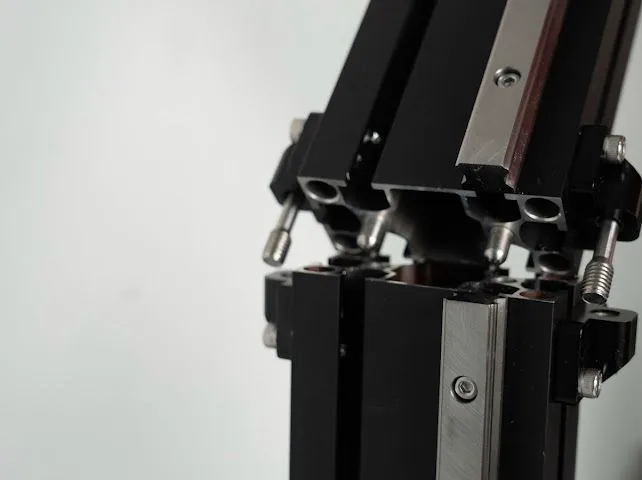

Vertiq Hypermural X uv wall printer — close-up detail view 3

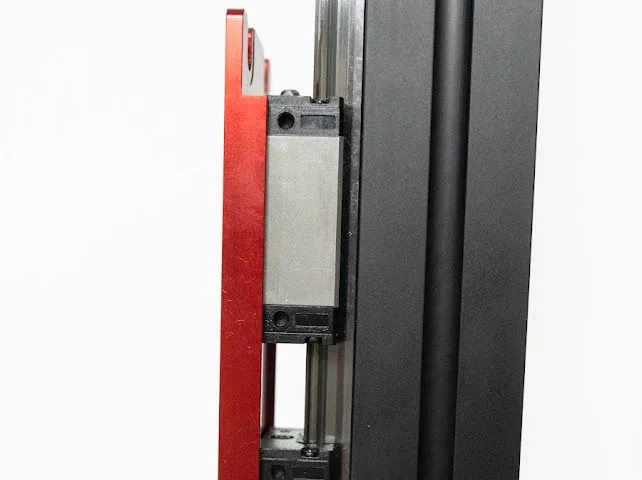

Vertiq Hypermural X uv wall printer — close-up detail view 4
Epson I1600 ×2
CMYK + White
UV Ink
2 Printheads
Wheel + Track System

Quick Overview

Max printing height 2.4 m, unlimited width
Two Epson I1600 printheads — one CMYK, one white
CMYK + White 5-colour UV ink
Ultrasonic sensors adjust for uneven surfaces
Prints no closer than 50 cm to floor or ceiling
Track & wheel system with stable aluminium platform
Prints on white, dark or coloured surfaces
Prints on most surfaces, porous and nonporous

Why Choose the Hypermural X

1

Exclusive Hand Ratchet Mechanism

A proprietary hand-crank ratchet device allows easy belt release and retraction. When adjusting height, simply install or remove vertical columns — no need to replace the belt.

2

Spring Cable Connection

Replaces the traditional cable drag chain with a spring cable connection, making the machine easier to assemble and disassemble and significantly simplifying installation.

3

Modular Design

The printer divides into four standard-sized packages for easy transport, enabling effortless relocation to any job site.

Technical Specifications

Printheads explained

Printheads
2 × Epson I1600 — one CMYK, one white
Production Speed
~25 min per m² (~2.4 m²/hour) CMYK, normal quality
Max Print Size
Up to 2.4 m height, unlimited width
Print Clearance
No closer than 50 cm to floor or ceiling
White Ink Circulation
Not fitted
Replacement Printhead
Epson I1600 — $1,500
Surface Orientation
Vertical (walls) only
Installation Time
10 minutes
Print Resolution
2880 × 1440 DPI
Ink System
CMYK + White 5-colour UV ink
Ink Costs
$0.40–$6.70 per square meter
Image Formats
PSD, CDR, JPG, JPEG, PNG, BMP, TIFF, EPS, AI, PDF
Printable Surfaces
Brick, Wood, Concrete, Marble, Glass, Wall Covering, Ceramics, Stone, Metal, Fabric, Plaster, Tile, Stucco & more
Indoor / Outdoor
Both indoor and outdoor suitable
Software Languages
English, German, Russian, French, Latin, Vietnamese, Portuguese
Origin
Assembled & shipped from California, USA
Warranty, Training & Support
Warranty, training and support terms are confirmed in writing with your quote.

What's Included

Everything you need to start printing — itemized on your quote before you commit.

Printer unit with Epson-certified printhead
Initial ink set and cleaning supplies
6m rail for printing on uneven surfaces
Extension rod for adjustable printing height
Software licence and operator onboarding
New user starter pack with printed samples & promotional materials
Warranty, training and support terms are confirmed in writing with your quote.

Ready to Get Started with the Hypermural X?

Get a personalized quote or book a live demo to see the machine in action.

Get QuoteView Hypermural X DualView Immersive DualView Vertiq ApexView Vertiq Nova

Hypermural X wall printer FAQ

How much is the Hypermural X wall printer?

The Hypermural X is listed at $18,900. Freight and starting consumables are confirmed in writing with your quote.

What printheads does the Hypermural X use?

The Hypermural X uses 2 Epson I1600 printheads.

What can the Hypermural X print on?

Walls only, with a print height of up to 2.4 m. It is assembled and shipped from California.
